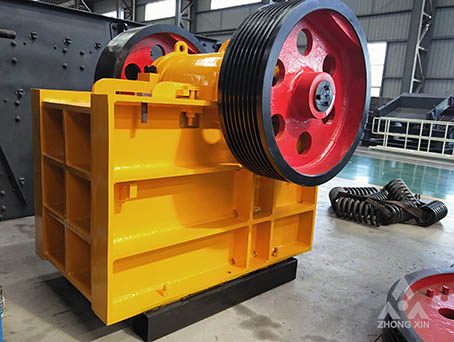

Jaw Crusher

【Introduction】:

Type:Primary Crusher.
Input Size:210mm--1020mm.
Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy.
Capacity:3-500 (t/h).

Whatsapp/Wechat:+86-13676922906

Chat Online Leave Message

Description

Jaw Crusher is one of popular stone crushing machines used in mining industry and it is ideally suitable for both primary and secondary crushing. PE series single toggle Jaw Crusher has the features of great crushing ratio and uniform sizes. Jaw Crusher can be used to crush materials with compressive resistance less than 320 MPA.
Jaw Crusher is used for primary crushing and secondary crushing.The maximum compression strength of materials to be crushed is 320MPA. Our design and production are of high position both at home and abroad.

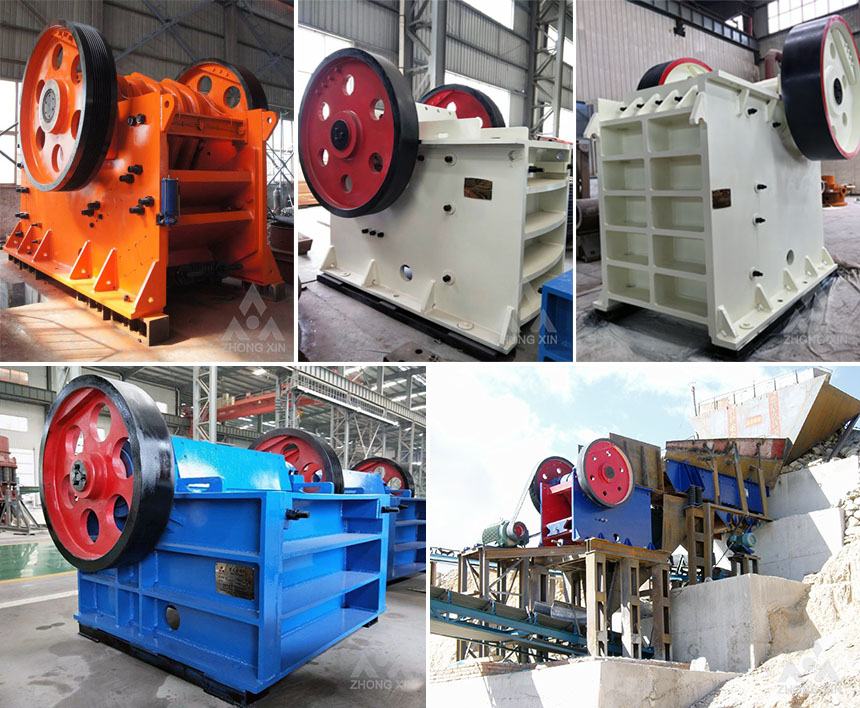

Jaw Crusher

Features

1.High crushing ratio, well-distributed final product size.
2.Lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance.
3.lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance.
4.High ratio of crushing, homogeneous final product size.
5.Little noise and dust.
6.The deep crushing cavity increases the feeding capacity and output capacity.

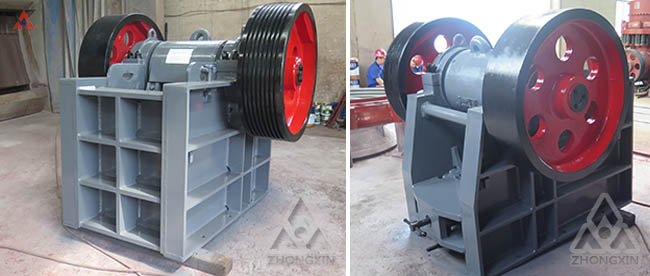

Jaw Crusher

Working principle

The motor transmits through belt,drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle plate and moving jaw plate increases when mobile jaw moving.So the mobile jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.

Jaw Crusher

Specifications



Model  Feeding opening size
(mm)
Max feeding size(mm) Discharge opening size
(mm)
Capacity
(t/h)
Motor Power
(kW)
Weight
(t)
Overall dimension
(L×W×H)(mm)
PE250×400 250×400 210 20-60 5-20 15 2.8 1180×1087×1245
PE400×600 400×600 340 40-100 16-60 30 6.65 1797×1716×1581
PE500×750 500×750 425 50-100 40-110 55 11.73 2119×1918×2046
PE600×900 600×900 500 65-180 80-180 55-75 16.13 2309×2028×2368
PE750×1060 750×1060 630 80-180 110-320 90-110 30 2730×2472×2840
PE870×1060 870×1060 750 170-270 180-360 90-110 31.22 2990×2416×2893
PE900×1200 900×1200 780 95-225 220-450 110-132 49 3362×2750×3260
PE1000×1200 1000×1200 850 195-280 280-550 110-132 51 3823×2938×3285
PE1200×1500 1200×1500 1020 150-300 400-800 160-220 100.9 4930×3334×4057
PEX150×750 150×750 120 18-48 8-25 15 3.5 1252×1593×1025
PEX250×750 250×750 210 20-50 13-35 30 4.96 1435×1832×1715
PEX250×1000 250×1000 210 25-60 16-52 30-37 6.5 1706×1964×1380
PEX250×1200 250×1200 210 25-60 20-61 37-45 8.8 1700×2132×1450
PEX300×1300 300×1300 250 20-90 25-95 55-75 12.6 2026×2320×1723

Model  ZXC96 ZXC106 ZXC110 ZXC125 ZXC160
Width of feeding opening
(mm)
930 1100 1100 1250 1600
Deepth of feeding opening
(mm)
580 630 850 950 1200
The max feeding size
(mm)
460 530 680 760 960
Power (kW) 90 110 160 160 250
Eccentric shaft speed
(rpm)
330 280 230 220 220
Capacity
(tph)
120-455 170-330 190-625 290-845 520-1275
The width of discharge opening size
(mm)
60-175 110-170 70-200 100-250 150-300
Overall dimension (L×W×H)
(mm)
2830×1983×1924 3346×2111×2376 3890×2374×2836 4111×2596×2952 5690×3318×3843
Weight (kg) 11353 18700 26150 39239 79993
Output size
(mm)
The tight side discharge opening
(mm)
Ton/Hour Ton/Hour Ton/Hour Ton/Hour Ton/Hour
0-30 20
0-35 25
0-45 30
0-60 40
0-75 50
0-90 60 120-155
0-105 70 140-180 155-200 190-250
0-120 80 160-210 175-230 210-275
0-135 90 180-235 200-260 235-305
0-150 100 200-260 220-290 255-330 290-380
0-185 125 250-325 280-365 310-405 350-455
0-225 150 300-390 335-435 370-480 410-535 520-675
0-260 175 350-455 390-510 425-550 470-610 595-775
0-300 200   445-580 480-625 530-690 675-880
0-340 225       590-770 750-975
0-375 250       650-845 825-1070
0-410 275         900-1170
0-450 300         980-1275
