Description

Bulk dolomite material is first crushed by jaw crusher into small particles and by the elevator sent into the storage bin.

Dolomite materials under the action of centrifugal force scattered around the circle, and fall into the grinding ring raceway inner ring rollers to shock, roll rolling, grinding, after a three-ring road into a powder processing, high pressure air through the suction effect of the external air sucked into the machine, and the crushed material powder sent to a separator machine.

In the separator machine, the rotating impeller makes the crude material down back into the mill machine for regrinding, and the other parts powder which are meet the requirements will with the air into the cyclone powder collector, and finally by its lower exhaust discharge valve to get the final product, a small amount of air with fine dust after through the purification of pulse dust collector and exhaust by muffler and fan.

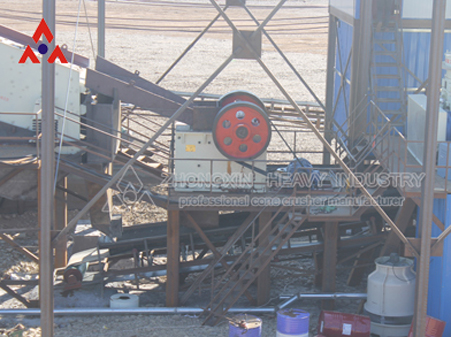

First of all bulk materials from large silos were uniform delivery by ZSW600×130 feeder to PE900×1200 jaw crusher, after jaw crusher primary crushing, they were transported by belt conveyor to transfer hopper, transit silo stone by the inertial vibration feeder to the conveyor belt to symons cone crusher and large silos, respectively, by sharing large silos inertial vibration feeder evenly sent to symons cone crusher for secondary crushing, the materials after secondary crushing were delivery by a belt conveyor to 3YK2460 circular vibrating screening process, eventually forming 0-5mm, 5-10mm, 10-20mm, 20-30mm, 30-80mm five finished product which were transported by belt conveyor to the finished product stockpiles.
