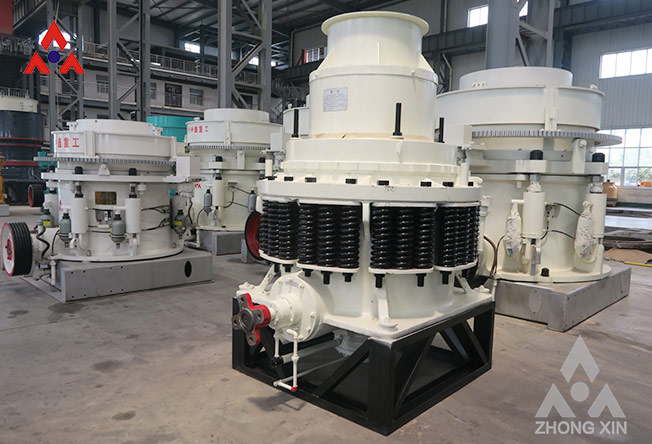

Spring cone crushers are widely used in metallurgy, building materials, road construction, sand and gravel metallurgy and other industries. They are suitable for crushing ores, rocks, granite, cobbles of various hardnesses and materials, and can also be used to crush construction waste.

　　The main structure consists of a frame, horizontal shaft, moving cone, balance wheel, eccentric sleeve, upper broken wall (fixed cone), lower broken wall (moving cone), hydraulic coupling, lubrication management system, hydraulic technology system, and control information system, etc.

　　1. Over-iron protection, safe and reliable, automatic cavity cleaning, spring cone crusher is fast and time-saving.

　　2. High crushing efficiency. The upper and lower ends of the main shaft of the spring cone crusher are equipped with supports, which can withstand large crushing force and stroke. In addition, the special crushing chamber shape suitable for the lamination principle enables high crushing efficiency.

　　3. The dry oil seal is dust-proof to ensure the cleanliness of wet oil. The spring cone crusher has good dust-proof effect and effectively extends the service life of parts.

　　4. The product has uniform particle size and cube shape.

　　5. The hydraulic system adjustment of the discharge port of the spring cone crusher can effectively control the particle size of sand and gravel, and is quick and convenient to use.

　　During the working process, the motor can rotate the triangle belt, large pulley, drive shaft, small bevel gear, and spring cone crusher. The moving cone of the crusher moves, so that the crushing wall and the rolling wall are sometimes close and sometimes far away; the ore is continuously squeezed in the crushing cavity. Pressure, impact, bending. The surface of the crushing chamber is covered with a wear-resistant high manganese steel lining plate, and the size of the discharge port of the spring cone crusher is adjusted hydraulically or manually.
